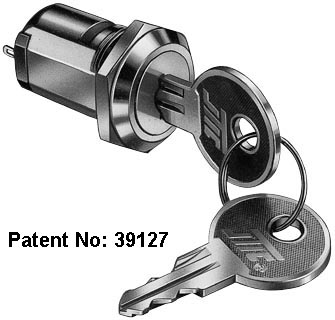

S296 SERIES KEYLOCK SWITCH
  • DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright nickel plated standard.
  • 4 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or both positions..
  • S296 2 position (off-on) 2 terminals.
  • S297 2 position (on-off) 2 terminals.
  • S298 2 position (on-on) 3 terminals.
  • S299 2 position (on-on) 4 terminals.
  • Hex nut or speed clip mounted.
  • 25 combinations available.
  • SPECIFICATIONS:
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10Milli-Ohms Max.
  • Insulation Resistance: 200 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1000 VAC -1 Minute.
  • KEY-PULL FIGURES
    -Off Position
    -Indicates Key-Pull
    -Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S296-1 1 2 2 1 90 ¢X Off On SPST
2 S296-2 1 2 2 2 90 ¢X Off On SPST
3 S297-1 1 2 2 1 90 ¢X On Off SPST
4 S297-2 1 2 2 2 90 ¢X On Off SPST
5 S298-1 1 2 3 1 90 ¢X On On SPDT
6 S298-2 1 2 3 2 90 ¢X On On SPDT
5 S299-1 1 2 4 1 90 ¢X On On SPDT
6 S299-2 1 2 4 2 90 ¢X On On SPDT

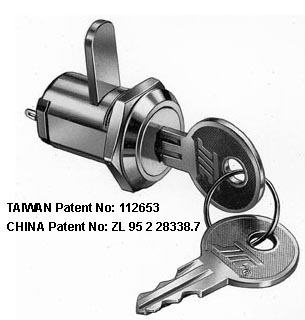

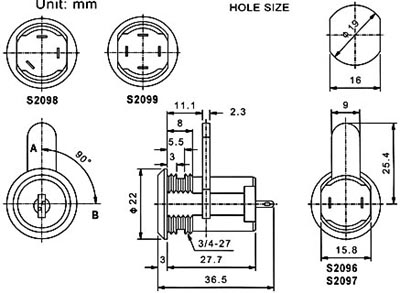

S2096 SERIES KEYLOCK SWITCH
  • DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright nickel plated standard.
  • 4 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Dual-functioned Key Lock Switch.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • S2096 2 position (off-on) 2 terminals.
  • S2097 2 position (on-off) 2 terminals.
  • S2098 2 position (on-on) 3 terminals.
  • S2099 2 position (on-on) 4 terminals.
  • Hex nut or speed clip mounted.
  • 25 combinations available.
  • SPECIFICATIONS:
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10 Milli - Ohms Max.
  • Insulation Resistance: 200 Meg - Ohms Min. (500VDC)
  • Dielectric Strength: 1000 VAC - 1 Minute.
  • S202ZD 2 position (on-on) 4 terminals.
  • S202ZE 2 position (off-on) 4 terminals.
  • Hex nut mounted.
  • 10000 combinations available.
  • KEY-PULL FIGURES
    -Off Position
    -Indicates Key-Pull
    -Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S2096-1 1 2 2 1 90 ¢X Off On SPST
2 S2096-2 1 2 2 2 90 ¢X Off On SPST
3 S2097-1 1 2 2 1 90 ¢X On Off SPST
4 S2097-2 1 2 2 2 90 ¢X On Off SPST
5 S2098-1 1 2 3 1 90 ¢X On On SPDT
6 S2098-2 1 2 3 2 90 ¢X On On SPDT
5 S2099-1 1 2 4 1 90 ¢X On On SPDT
6 S2099-2 1 2 4 2 90 ¢X On On SPDT
