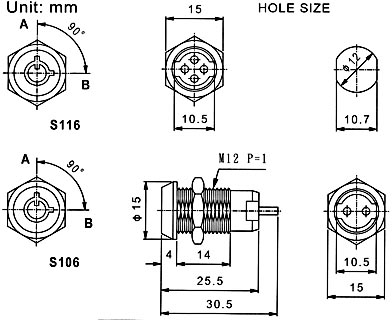

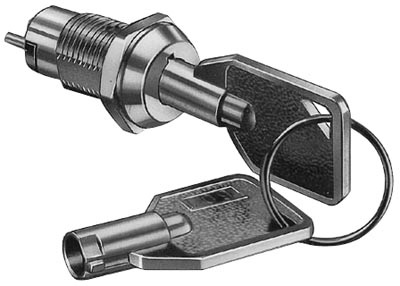

S106 S116 S106M KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 4 pin tumbler mechanism.
  • Zinc alloy tubular keys, chrome plated.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • S106 2 position (off-on) 2 terminals.
  • S116 2 position (on-on) 4 terminals.
  • S106M 2 position (off-on) 2 terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • 200 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S106-1 1 2 2 1 90 ¢X Off On SPST
2 S106-2 1 2 2 2 90 ¢X Off On SPST
3 S116-1 1 2 4 1 90 ¢X On On SPDT
4 S116-2 1 2 4 2 90 ¢X On On SPDT
5 S116M 1 2 2 1 90 ¢X Off On SPDT

*( ):Momentary Contact

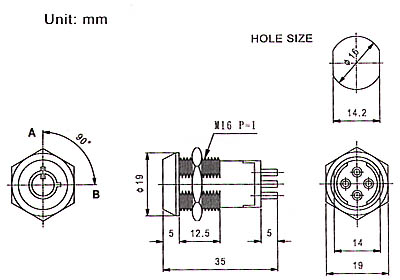

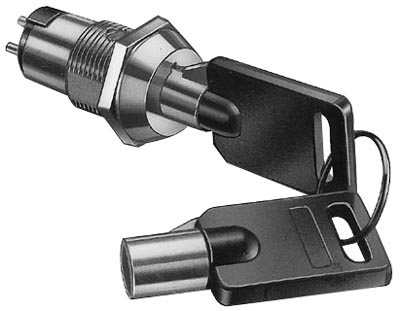

S314 KEYLOCK SWITCH
DESCRIPTIONS:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 7 pin tumbler mechanism.
  • Steel made tubular keys, chrome plated, with plastic cover.
  • Key may be withdrawn in one or both positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 2 terminals.
  • Hex nut mounted.
  • 10000 combinations available.

KEY-PULL FIGURES
-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull

Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S314-1 1 2 4 1 90 ¢X On On SPDT
2 S314-2 1 2 4 2 90 ¢X On On SPDT
